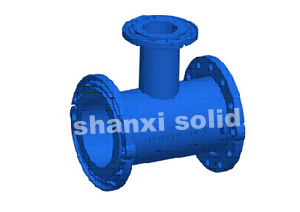

All Loosing Flanged Tee 散法兰三通

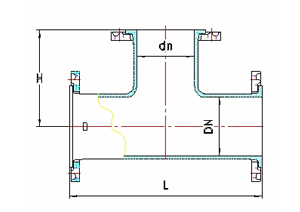

DN	dn	L	H	Mass without loosing flanges (kg)	Mass with loosing flanges PN10 (kg)	Mass with loosing flanges PN16 (kg)	Standard
40	40	250	125	3.30	7.50	7.50
50	40	275	130	4.00	8.60	8.60
50	50	275	135	4.30	9.10	9.10
60	40	270	100	4.20	9.20	9.20
60	50	295	130	4.90	10.10	10.10
60	60	295	145	5.20	10.60	10.60
65	40	270	100	5.00	10.80	10.80
65	50	295	130	5.10	11.10	11.10
65	65	305	150	5.50	12.10	12.10	EN545-B
80	40	305	130	6.00	12.00	12.00
80	50	305	135	6.20	12.40	12.40
80	60	310	155	6.60	13.00	13.00	EN545-B
80	65	305	150	6.40	13.20	13.20
80	80	325	160	7.30	14.20	14.20
100	40	320	145	7.70	14.10	14.10	EN545-B
100	50	315	145	7.70	14.30	14.30
100	60	315	160	8.00	14.80	14.80
100	65	320	165	8.40	15.60	15.60	EN545-B
100	80	325	165	8.60	15.90	15.90
100	100	355	175	9.80	17.30	17.30
125	40	325	155	9.80	17.60	17.60
125	50	325	160	10.00	18.00	18.00
125	60	325	175	10.30	18.50	18.50
125	65	325	175	10.60	19.20	19.20
125	80	345	180	11.30	20.00	20.00
125	100	365	190	12.30	21.20	21.20
125	125	400	200	13.90	23.50	23.50	EN545
150	40	335	165	12.50	22.30	22.30
150	50	335	175	12.70	22.70	22.70
150	60	335	185	13.00	23.20	23.20
150	65	340	190	13.80	24.40	24.40	EN545-B
150	80	355	195	14.00	24.70	24.70
150	100	375	200	15.10	26.00	26.00
150	125	405	210	16.90	28.50	28.50
150	150	435	215	18.80	31.40	31.40
200	40	360	190	18.90	32.30	32.10
200	50	360	205	19.10	32.70	32.50
200	60	360	210	19.30	33.10	32.90
200	65	360	210	20.00	34.20	34.00
200	80	375	220	20.40	34.70	34.50
200	100	395	225	21.70	36.20	36.00
200	125	430	235	24.00	39.20	39.00
200	150	455	240	25.90	42.10	41.90
200	200	515	255	30.90	48.90	48.60
250	60	380	255	26.80	45.80	45.00
250	80	405	265	28.30	47.80	47.00
250	100	425	270	30.00	49.70	48.90	EN545-B
250	125	450	270	32.30	52.70	51.90
250	150	485	280	34.80	56.20	55.40
250	200	535	285	40.10	63.30	62.40
250	250	600	300	46.20	72.00	70.80
300	60	400	285	35.60	60.00	58.60
300	80	420	290	37.40	62.30	60.90
300	100	445	295	39.70	64.80	63.40
300	125	470	300	42.20	68.00	66.60
300	150	500	305	45.10	71.90	70.50
300	200	565	320	51.40	80.00	78.50
300	250	615	325	57.90	89.10	87.30
300	300	680	340	65.60	99.50	97.40
400	100	490	360	67.00	102.40	111.50	EN545
400	200	610	380	82.10	121.00	130.00	EN545
500	500	1000	500	238.00	313.00	352.00	EN545
