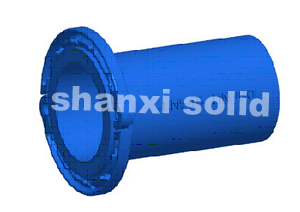

Loosing Flanged Spigot

Loosing Flanged Spigot
É¢·¨À¼µ¥Ö±¹Ü

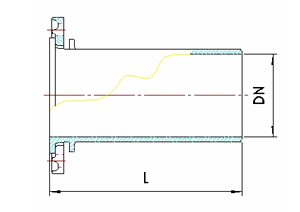

DN
L
Mass without loosing flanges (kg)
Mass with loosing flanges PN10 (kg)
Mass with loosing flanges PN16 (kg)
Standard
60
345
4.20
6.00
6.00
EN545
65
345
4.30
6.50
6.50
EN545
80
350
5.50
7.80
7.80
EN545
100
360
7.10
9.60
9.60
EN545
125
370
9.70
12.90
12.90
EN545
150
380
12.40
16.60
16.60
EN545
200
400
18.60
24.60
24.50
EN545
250
400
25.80
34.40
34.00
¡¡
300
420
34.40
45.70
45.00
¡¡
350
420
44.10
58.20
59.00
¡¡
400
480
56.00
72.50
77.00
EN545
450
500
69.00
89.00
98.00
EN545
500
495
84.00
109.00
122.00
¡¡
