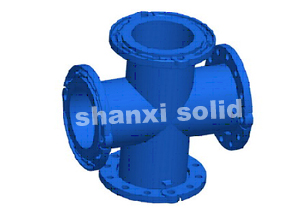

All Loosing Flanged Cross

All Loosing Flanged Cross
É¢·¨À¼Ê®×Öͨ

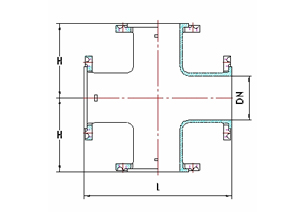

DN
L
H
Mass without loosing flanges (kg)
Mass with loosing flanges PN10 (kg)
Mass with loosing flanges PN16 (kg)
Standard
65
330
165
8.70
17.50
17.50
EN545
80
330
165
11.30
20.50
20.50
EN545
100
360
180
14.50
24.50
24.50
EN545
125
400
200
21.50
34.30
34.30
EN545
150
440
220
28.20
45.00
45.00
EN545
200
520
260
45.50
69.50
69.10
EN545
250
700
350
77.10
111.50
109.90
EN545
300
800
400
111.40
156.60
153.80
EN545
350
850
425
144.60
201.00
204.20
EN545
