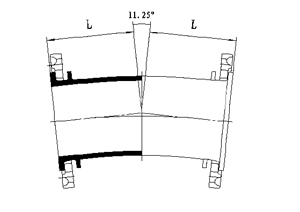

dbl Loosing Flanged 11.25°Bend

dbl Loosing Flanged 11.25° Bend 散法兰11.25°弯头
DN	L	Mass without loosing flanges (kg)	Mass with loosing flanges PN10 (kg)	Mass with loosing flanges PN16 (kg)	Standard
40	99	2.00	4.80	4.80
50	109	2.60	5.80	5.80
60	119	3.20	6.80	6.80
65	165	4.00	9.00	9.00
80	113	4.10	8.70	8.70
100	115	5.20	10.20	10.20
125	111	6.70	13.10	13.10
150	113	8.60	17.00	17.00
200	132	14.20	26.20	26.00
250	143	20.30	37.50	36.70
300	132	21.00	43.60	46.00
