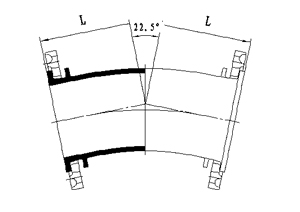

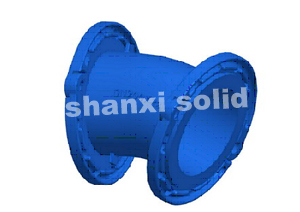

dbl Loosing Flanged 22.5°Bend

dbl loosing flanged bend

dbl Loosing Flanged 22.5°Bend
散法兰 22.5°弯头
DN
L
Mass without loosing flanges (kg)
Mass with loosing flanges PN10 (kg)
Mass with loosing flanges PN16 (kg)
Standard
40
94
1.90
4.70
4.70
　
50
104
2.50
5.70
5.70
　
60
114
3.10
6.70
6.70
　
65
165
3.90
8.30
8.30
　
80
105
3.80
8.40
8.40
　
100
110
5.00
10.00
10.00
　
125
105
6.40
12.80
12.80
　
150
109
8.40
16.80
16.80
　
200
131
14.10
26.10
25.90
　
250
149
18.40
35.60
36.40
　
300
162
25.40
48.00
50.40
　
