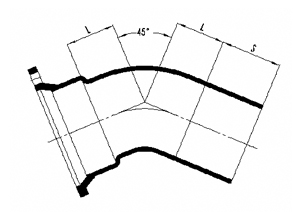

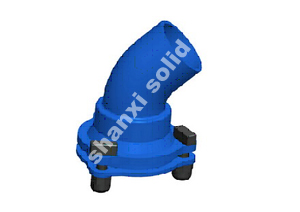

45°Socket Spigot Bends 承插口45度弯头
DN	L	S	Mass without glands (kg)	Mass with glands (kg)	standard
80	55	150	8.00	8.98	EN545
100	65	150	10.90	12.50	EN545
150	85	200	19.60	21.80	EN545
200	110	200	28.90	32.10	EN545
250	130	200	39.10	43.50	EN545
300	150	200	55.30	60.50	EN545
350	175	200	71.30	77.80	EN545
400	195	200	90.00	97.80	EN545
450	220	200	110.50	121.20	EN545
500	240	200	132.40	147.60	EN545
600	285	200	189.00	209.00	EN545
700	330	200	260.00		EN545
800	370	200	340.00		EN545
900	415	250	464.00		EN545
1000	460	250	592.00		EN545
1100	505	250	726.00		EN545
1200	550	250	895.00		EN545
1400	515	300	1177.00		EN545
1500	540	300	1317.00		EN545
1600	560	300	1588.00		EN545
1800	610	380	2161.00		EN545
2000	660	380	2768.00		EN545
2200	710	400	3426.00
2400	755	400	4213.00
2600	805	400	5261.00
