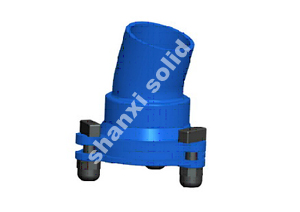

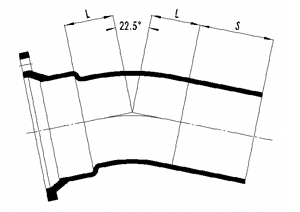

22.5°Socket Spigot Bends

22.5° Socket Spigot Bends
承插口22.5度弯头
DN
L
S
Mass without glands (kg)
Mass with glands (kg)
standard
80
40
150
706.00
706.98
EN545
100
40
150
10.10
11.70
EN545
150
55
200
18.10
20.30
EN545
200
65
200
25.40
28.60
EN545
250
75
200
34.10
38.50
EN545
300
85
200
47.30
52.50
EN545
350
95
200
58.50
65.00
EN545
400
110
200
74.00
81.80
EN545
450
120
200
88.50
99.20
EN545
500
130
200
105.00
120.20
EN545
600
150
200
144.00
164.00
EN545
700
175
200
194.00
　
EN545
800
195
200
248.00
　
EN545
900
220
250
340.00
　
　
1000
240
250
426.00
　
　
1100
260
250
515.00
　
　
1200
285
250
623.00
　
　
1400
260
300
836.00
　
EN545
1500
270
300
965.00
　
EN545
1600
280
300
1102.00
　
EN545
1800
305
380
1528.00
　
EN545
2000
330
380
1942.00
　
EN545
2200
355
400
2373.00
　
　
2400
380
400
2927.00
　
　
2600
400
400
3638.00
　
　
