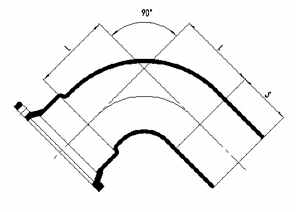

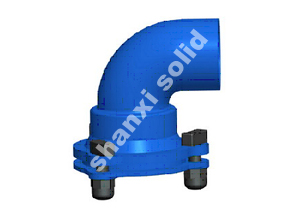

90° Socket-Spigot Bends

90° Socket-Spigot Bends
承插口90度弯头
DN
L
S
Mass without glands (kg)
Mass with glands (kg)
standard
80
100
150
8.90
9.88
EN545
100
120
150
12.20
13.80
EN545
150
170
200
23.10
25.30
EN545
200
220
200
34.90
38.10
EN545
250
270
200
49.10
53.50
EN545
300
320
200
70.80
76.00
EN545
350
370
200
92.80
99.30
　
400
420
200
120.00
127.80
　
450
470
200
150.00
160.70
　
500
520
200
185.00
200.20
　
600
620
200
270.00
290.00
　
700
720
200
379.00
　
　
800
820
200
511.00
　
　
900
920
250
696.00
　
　
1000
1020
250
898.00
　
　
1100
1120
250
1122.00
　
　
1200
1220
250
1396.00
　
　
1400
1220
300
1872.00
　
　
1500
1270
300
2184.00
　
　
1600
1290
330
2484.00
　
　
1800
1320
330
3224.00
　
　
2000
1360
400
4010.00
　
　
2200
1400
400
5587.00
　
　
2400
1460
400
6810.00
　
　
2600
1520
400
8193.00
　
　
