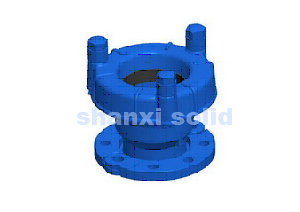

Flanged Socket,EX Flanged Socket

EX 散法兰承口

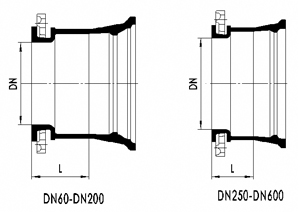

DN	L	Mass without glands		Mass with lossing		Mass with glands and loosing flanges(kg)		Mass completely (kg)
		or loosing flanges(kg)		without glands (kg)		Mass with glands and loosing flanges(kg)		Mass completely (kg)
		PN10	PN16	PN10	PN16	PN10	PN16	PN10	PN16
60	100	4.50	4.50	6.30	6.30	8.80	8.80	9.60	9.60
80	105	5.70	5.70	8.00	8.00	10.80	10.80	12.10	12.10
100	105	7.10	7.10	9.60	9.60	12.60	12.60	13.90	13.90
125	110	8.80	8.80	12.00	12.00	15.30	15.30	16.60	16.60
150	110	11.20	11.20	15.40	15.40	19.50	19.50	21.20	21.20
200	115	15.60	15.50	21.60	21.40	26.80	26.60	28.90	28.70
250	120	23.60	23.60	32.20	31.80	37.60	37.20	40.10	39.70
300	125	29.90	29.90	41.20	40.50	49.40	48.70	52.34	51.60
350	130	36.70	36.70	50.80	51.60	59.80	60.60	63.20	64.00
400	135	43.60	43.60	60.10	64.60	71.30	75.80	75.10	79.60
450	140	61.00	61.00	81.00	90.00	100.00	109.00	103.40	112.40
500	145	71.00	71.00	96.00	109.00	116.00	129.00	121.00	134.00
600	155	93.50	93.50	126.50	151.50	153.00	178.00	159.00	184.00
