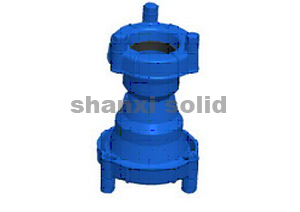

Double EX Socket Taper,Flanged Socket

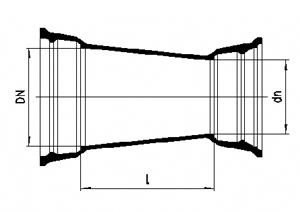

Double EX Socket Taper EX 双承渐缩
DN	dn	L	Mass without glands (kg)	Mass with glands (kg)	Mass completely (kg)
80	60	90	7.50	12.80	14.90
100	60	130	8.20	13.70	15.80
100	80	90	8.80	14.60	17.12
125	60	180	9.80	15.60	17.70
125	80	140	10.00	16.10	18.62
125	100	100	10.50	16.80	19.32
150	60	230	12.30	18.90	21.42
150	80	190	12.80	19.70	22.64
150	100	150	13.50	20.60	23.54
150	125	100	14.20	21.60	24.54
200	60	330	19.50	27.20	30.14
200	80	290	20.00	28.00	31.36
200	100	250	21.00	29.20	32.56
200	125	200	22.00	30.50	33.86
200	150	150	23.00	32.30	36.08
250	60	430	29.10	37.00	40.36
250	80	390	29.30	37.50	41.28
250	100	350	30.00	38.40	42.18
250	125	300	33.00	41.70	45.48
250	150	250	35.00	44.50	48.70
250	200	150	37.00	47.60	52.22
300	60	530	39.70	50.40	54.18
300	80	490	39.90	50.90	55.10
300	100	450	39.90	51.10	55.30
300	125	400	40.00	51.50	55.70
300	150	350	42.00	54.30	58.90
300	200	250	40.00	53.40	58.44
300	250	150	40.00	53.60	59.06
350	60	640	50.80	62.30	66.50
350	80	600	51.00	62.80	67.42
350	100	560	51.00	63.00	67.62
350	125	510	51.30	63.60	68.22
350	150	460	51.40	64.50	69.54
350	200	360	50.30	64.50	69.96
350	250	260	50.60	65.00	70.88
350	300	160	49.00	66.20	72.50
400	60	740	63.50	77.20	81.82
400	80	700	63.50	77.50	82.54
400	100	660	63.80	78.00	83.04
400	125	610	64.10	78.60	83.64
400	150	560	64.30	79.60	85.06
400	200	460	63.40	79.80	85.68
400	250	360	63.80	80.40	86.70
400	300	260	62.20	81.60	88.32
400	350	160	57.60	77.80	84.94
450	60	840	80.80	102.30	106.50
450	80	800	80.90	102.70	107.32
450	100	760	81.10	103.10	107.72
450	125	710	81.60	103.90	108.52
450	150	660	81.90	105.00	110.04
450	200	560	81.10	105.30	110.76
450	250	460	81.70	106.10	111.98
450	300	360	50.20	77.40	83.70
450	350	260	75.60	103.60	110.32
450	400	160	69.70	99.90	107.04
500	60	940	99.00	121.50	127.34
500	80	900	99.20	122.00	128.26
500	100	860	99.50	122.50	128.76
500	125	810	100.00	123.30	129.56
500	150	760	100.50	124.60	131.28
500	200	660	100.00	125.20	132.30
500	250	560	100.60	126.00	133.52
500	300	460	99.20	127.40	135.34
500	350	360	94.70	123.70	132.06
500	400	260	88.90	120.10	128.88
500	450	160	84.10	123.10	131.46
600	60	1140	141.60	170.60	177.44
600	80	1100	141.70	171.00	178.26
600	100	1060	142.20	171.70	178.96
600	125	1010	143.00	172.80	180.06
600	150	960	143.80	174.40	182.08
600	200	860	143.70	175.40	183.50
600	250	760	144.80	176.70	185.22
600	300	660	143.80	178.50	187.44
600	350	560	139.60	175.10	184.46
600	400	460	134.00	171.70	181.48
600	450	360	129.30	174.80	184.16
600	500	260	121.60	168.10	179.10
