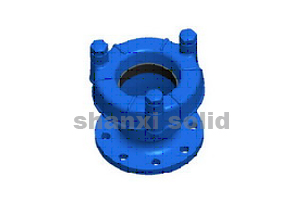

EX Flanged Socket

EX Flanged Socket EX 法兰承口

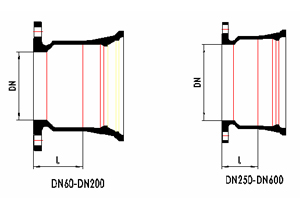

DN	L	Mass without glands (kg)		Mass with glands (kg)		Mass completely (kg)
DN	L	PN10	PN16	PN10	PN16	PN10	PN16
60	100	6.10	6.10	8.60	8.60	9.44	9.44
80	105	7.90	7.90	10.70	10.70	11.96	11.96
100	105	9.50	9.50	12.50	12.50	13.76	13.76
125	110	11.50	11.50	14.80	14.80	16.06	16.06
150	110	14.40	14.40	18.50	18.50	20.18	20.18
200	115	19.60	19.40	24.80	24.60	26.90	26.70
250	120	29.60	29.30	35.00	34.70	37.52	37.22
300	125	37.80	37.50	46.00	45.70	48.94	48.64
350	130	44.60	47.60	53.60	56.60	57.00	60.00
400	135	52.10	57.60	63.30	68.80	67.10	72.58
450	140	66.10	74.00	85.10	93.00	88.50	96.40
500	145	79.60	93.00	99.60	113.00	104.60	118.00
600	155	102.80	126.50	129.30	153.00	135.30	159.00
