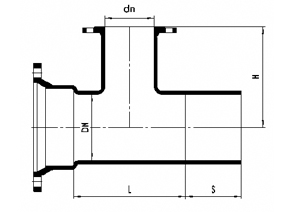

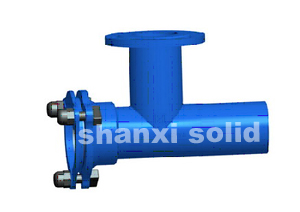

Socket Spigot Tees With Flanged Branch 承插口三通带法兰支口
DN	dn	L	H	S	Mass without glands (kg)			Mass with glands (kg)			standard
DN	dn	L	H	S	PN10	PN16	PN25	PN10	PN16	PN25	standard
80	80	170	165	150	13.90	13.90	13.90	14.88	14.88		EN545
100	80	170	170	150	16.70	16.70	16.70	18.30	18.30		EN545
100	100	190	180	150	18.00	18.00	18.50	19.60	19.60		EN545
150	80	170	205	200	25.00	25.00	25.00	27.20	27.20		EN545
150	100	195	210	200	27.00	27.00	27.50	29.20	29.20		EN545
150	150	255	220	200	32.00	32.00	33.00	34.20	34.20		EN545
200	80	175	235	200	32.70	32.70	32.70	35.90	35.90		EN545
200	100	200	240	200	34.70	34.70	35.20	37.90	37.90		EN545
200	150	255	250	200	40.70	40.70	41.70	43.90	43.90		EN545
200	200	315	260	200	47.70	47.20	49.20	50.90	50.40		EN545
250	80	200	270	200	42.30	42.30	42.30	46.70	46.70
250	100	200	270	200	43.30	43.30	43.80	47.70	47.70		EN545
250	150	255	280	200	54.30	54.30	55.30	58.70	58.70
250	200	315	290	200	57.80	57.30	59.30	62.20	61.70		EN545
250	250	375	300	200	66.80	66.30	69.80	71.20	70.70		EN545
300	100	205	300	200	56.40	56.40	56.90	61.60	61.60		EN545
300	150	260	310	200	69.90	69.90	70.90	75.10	75.10		EN545
300	200	320	320	200	72.90	72.90	74.90	78.10	78.10		EN545
300	250	375	330	200	90.50	90.50	95.50	95.70	95.70
300	300	435	340	200	93.40	93.40	98.40	98.60	98.60		EN545
350	100	205	330	200	67.00	67.00	67.50	73.50	73.50		EN545
350	150	260	340	200	83.50	83.50	84.50	90.00	90.00
350	200	325	350	200	86.50	86.50	88.50	93.00	93.00		EN545
350	250	375	360	200	106.00	106.00	107.00	112.50	112.50
350	300	435	370	200	109.00	109.00	114.00	115.50	115.50
350	350	495	380	200	120.00	123.00	130.00	126.50	129.50		EN545
400	100	210	360	200	80.20	80.20	80.70	88.00	88.00		EN545
400	150	265	370	200	98.20	98.20	99.20	106.00	106.00
400	200	325	380	200	102.00	101.00	103.00	109.80	108.80		EN545
400	250	375	390	200	125.00	125.00	129.00	132.80	132.80
400	300	435	400	200	126.00	125.00	131.00	133.80	132.80
400	350	495	410	200	148.00	151.00	160.00	155.80	158.80
400	400	560	420	200	152.00	156.00	167.00	159.80	163.80		EN545
450	100	215	395	200	93.30	93.30	94.30	104.00	104.00		EN545-B
450	150	270	400	200	114.00	114.00	115.00	124.70	124.70		EN545-B
450	200	325	410	200	117.00	117.00	119.00	127.70	127.70
450	250	375	420	200	134.00	134.00	136.00	144.70	144.70
450	300	445	430	200	144.00	144.00	149.00	154.70	154.70		EN545-B
450	350	495	440	200	169.00	172.00	181.00	179.70	182.70
450	400	560	450	200	172.00	176.00	187.00	182.70	186.70		EN545-B
450	450	620	460	200	187.00	195.00	206.00	197.70	205.70		EN545-B
500	100	215	420	200	107.00	107.00	107.00				EN545
500	150	275	430	200	130.00	130.00	131.00
500	200	330	440	200	134.00	133.00	135.00				EN545
500	250	380	450	200	157.00	157.00	161.00
500	300	450	460	200	164.00	164.00	169.00
500	350	500	470	200	184.00	187.00	196.00
500	400	565	480	200	194.00	199.00	210.00				EN545
500	450	620	490	200	222.00	230.00	245.00
500	500	680	500	200	229.00	243.00	253.00				EN545
600	100	220	480	200	138.00	138.00	139.00
600	150	285	490	200	169.00	169.00	170.00
600	200	340	500	200	177.00	173.00	174.00				EN545
600	250	380	510	200	203.00	203.00	206.00
600	300	455	520	200	208.00	208.00	213.00
600	350	500	530	200	235.00	238.00	246.00
600	400	570	540	200	244.00	249.00	260.00				EN545
600	450	620	550	200	277.00	286.00	301.00
600	500	685	560	200	297.00	301.00	324.00
600	600	800	580	200	331.00	354.00	366.00				EN545
700	100	345	510	200	221.00	221.00	221.00
700	150	345	520	200	224.00	224.00	225.00
700	200	345	525	200	228.00	227.00	229.00				EN545
700	300	575	540	200	301.00	301.00	307.00
700	400	575	555	200	307.00	312.00	323.00				EN545
700	500	810	570	200	392.00	407.00	419.00
700	600	810	585	200	400.00	423.00	435.00
700	700	925	600	200	454.00	466.00	499.00				EN545
800	100	350	570	200	270.00	270.00	270.00
800	150	350	580	200	273.00	273.00	274.00
800	200	350	585	200	277.00	276.00	278.00				EN545
800	300	580	600	200	362.00	362.00	368.00
800	400	580	615	200	371.00	376.00	387.00				EN545
800	500	815	630	200	513.00	528.00	540.00
800	600	815	645	200	554.00	578.00	589.00
800	700	1045	660	200	590.00	614.00	648.00
800	800	1045	675	200	606.00	621.00	674.00				EN545
900	100	355	630	250	355.00	355.00	356.00
900	150	355	640	250	358.00	358.00	359.00
900	200	355	645	250	361.00	361.00	363.00				EN545
900	300	590	660	250	442.00	442.00	448.00
900	400	590	675	250	474.00	478.00	489.00				EN545
900	500	820	690	250	653.00	668.00	690.00
900	600	820	705	250	735.00	759.00	770.00
900	700	1050	720	250	764.00	786.00	796.00
900	800	1050	735	250	785.00	800.00	824.00
900	900	1170	750	250	812.00	831.00	907.00				EN545
1000	100	360	690	250	415.00	415.00	415.00
1000	150	360	700	250	430.00	430.00	431.00
1000	200	360	705	250	434.00	434.00	436.00				EN545
1000	300	595	720	250	521.00	521.00	525.00
1000	400	595	735	250	565.00	570.00	581.00				EN545
1000	500	830	750	250	852.00	867.00	879.00
1000	600	830	765	250	925.00	949.00	960.00
1000	700	1055	780	250	958.00	982.00	994.00
1000	800	1055	795	250	973.00	988.00	1025.00
1000	900	1290	810	250	982.00	1014.00	1075.00
1000	1000	1290	825	250	1038.00	1073.00	1159.00				EN545
1100	200	370	765	250	505.00	505.00	507.00
1100	400	600	795	250	654.00	658.00	669.00				EN545
1100	600	830	825	250	810.00	834.00	845.00				EN545
1100	800	1065	855	250	989.00	1003.00	1040.00
1100	1000	1295	885	250	1179.00	1214.00	1300.00
1100	1100	1410	900	250	1287.00	1322.00	1420.00
1200	100	375	810	250	676.00	676.00	676.00
1200	150	375	820	250	678.00	678.00	678.00
1200	200	375	825	250	593.00	593.00	595.00
1200	300	605	840	250	769.00	769.00	775.00
1200	400	605	855	250	862.00	867.00	878.00
1200	500	840	870	250	880.00	890.00	900.00
1200	600	840	885	250	915.00	966.00	978.00				EN545
1200	700	1070	900	250	1080.00	1095.00	1128.00
1200	800	1070	915	250	1137.00	1152.00	1205.00
1200	900	1300	930	250	1290.00	1314.00	1360.00
1200	1000	1300	945	250	1347.00	1381.00	1467.00				EN545
1200	1200	1535	975	250	1592.00	1647.00	1757.00
1400	100	385	910	300	1120.00	1120.00	1120.00
1400	200	385	920	300	1189.00	1189.00	1189.00
1400	400	800	950	300	1211.00	1216.00	1227.00
1400	600	1030	980	300	1431.00	1454.00	1466.00				EN545
1400	800	1260	1010	300	1667.00	1682.00	1777.00				EN545
1400	1000	1495	1040	300	1919.00	1954.00	2075.00				EN545
1400	1200	1725	1070	300	2195.00	2250.00	2539.00
1400	1400	1960	1100	300	2491.00	2547.00	2917.00
1600	100	400	1020	300	1261.00	1261.00	1261.00
1600	200	400	1030	300	1361.00	1761.00	1361.00
1600	400	810	1060	300	1547.00	1551.00	1561.00
1600	600	1040	1090	300	1817.00	1840.00	1852.00				EN545
1600	800	1275	1120	300	2107.00	2122.00	2136.00				EN545
1600	1000	1505	1150	300	2402.00	2437.00	2863.00				EN545
1600	1200	1740	1180	300	2729.00	2784.00	2863.00				EN545
1600	1400	1970	1210	300	3059.00	3116.00	3216.00
1600	1600	2200	1240	300	3447.00	3537.00	3689.00
1800	100	410	1130	380	1742.00	1742.00	1742.00
1800	200	410	1140	380	1842.00	1842.00	1842.00
1800	400	820	1170	380	2042.00	2042.00	2042.00
1800	600	1055	1200	380	2367.00	2391.00	2042.00				EN545
1800	800	1285	1230	380	2707.00	2722.00	2796.00				EN545
1800	1000	1520	1260	380	3063.00	3097.00	3183.00				EN545
1800	1200	1750	1290	380	3436.00	3491.00	3592.00				EN545
1800	1400	1980	1320	380	3815.00	3872.00	4000.00
1800	1600	2215	1350	380	4253.00	4342.00	4480.00
1800	1800	2445	1380	380	4689.00	4800.00	5000.00
2000	200	420	1250	380	2230.00	2230.00	2232.00
2000	400	830	1280	380	2530.00	2534.00	2547.00
2000	600	1065	1310	380	2892.00	2915.00	2927.00				EN545
2000	800	1300	1340	380	3301.00	3316.00	3337.00
2000	1000	1530	1370	380	3710.00	3744.00	3788.00				EN545
2000	1200	1760	1400	380	4141.00	4196.00	4243.00
2000	1400	1995	1430	380	4582.00	4642.00	4743.00				EN545
2000	1600	2225	1460	380	5069.00	5159.00	5287.00
2000	1800	2460	1490	380	5559.00	5671.00	5863.00
2000	2000	2690	1520	380	6092.00	6230.00	6506.00
2200	600	1080	1420	400	3548.00	3575.00
2200	800	1310	1450	400	3911.00	3926.00
2200	1000	1540	1480	400	4385.00	4419.00
2200	1200	1775	1510	400	4889.00	4944.00
2200	1400	2005	1540	400	5387.00	5444.00
2200	1600	2240	1570	400	5941.00	6030.00
2200	1800	2470	1600	400	6480.00	6591.00
2200	2000	2700	1630	400	7060.00	7198.00
2200	2200	2935	1660	400	7726.00	7896.00
2400	600	1090	1530	400	4071.00	4097.00
2400	800	1320	1560	400	4552.00	4567.00
2400	1000	1555	1590	400	5105.00	5140.00
2400	1200	1785	1620	400	5668.00	5723.00
2400	1400	2020	1650	400	6243.00	6300.00
2400	1600	2250	1680	400	6852.00	6941.00
2400	1800	2480	1710	400	7454.00	7565.00
2400	200	2715	1740	400	8106.00	8244.00
2400	2200	2945	1770	400	8812.00	8982.00
2400	2400	3180	1800	400	9600.00	9828.00
2600	600	1100	1640	400	4959.00	4925.00
2600	800	1335	1670	400	5557.00	5572.00
2600	1000	1565	1700	400	6179.00	6214.00
2600	1200	1800	1730	400	6833.00	6888.00
2600	1400	2330	1760	400	7475.00	7532.00
2600	1600	2260	1790	400	8159.00	8248.00
2600	1800	2495	1820	400	8846.00	8958.00
2600	2000	2725	1850	400	9557.00	9695.00
2600	2200	2960	1880	400	10344.00	10514.00
2600	2400	3190	1910	400	11177.00	11405.00
2600	2600	3420	1940	400	11977.00	12230.00
