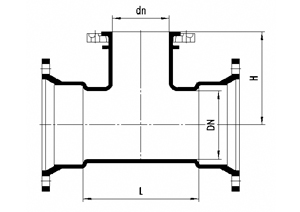

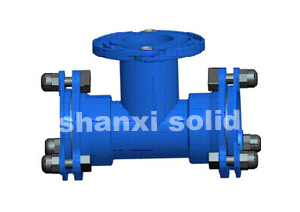

Double Socket Loosing Flange Branch Tee 双承三通带散法兰支口
DN	dn	L	H	Mass without glands (kg)		Mass with glands (kg)		Mass completely (kg)		standard
DN	dn	L	H	PN10	PN16	PN10	PN16	PN10	PN16	standard
60	40	155	130	6.80	6.80	8.32	8.32	9.88	9.88	EN545-B
60	60	155	150	7.80	7.80	9.32	9.32	10.88	10.88	EN545-B
80	40	155	135	11.00	11.00	12.96	12.96	15.30	15.30	EN545-B
80	60	155	155	12.30	12.30	14.26	14.26	16.60	16.60	EN545-B
80	80	175	165	13.00	13.00	14.96	14.96	17.30	17.30	EN545-B
100	40	155	145	12.50	12.50	15.70	15.70	18.04	18.04	EN545-B
100	60	155	165	13.50	13.50	16.70	16.70	19.04	19.04	EN545-B
100	80	165	170	13.80	13.80	17.00	17.00	19.34	19.34	EN545-B
100	100	195	180	18.00	18.00	21.20	21.20	23.54	23.54	EN545-B
125	60	155	180	17.60	17.60	21.40	21.40	23.74	23.74	EN545-B
125	80	175	185	19.00	19.00	22.80	22.80	25.14	25.14	EN545-B
125	100	195	195	20.00	20.00	23.80	23.80	26.14	26.14	EN545-B
125	125	225	200	22.00	22.00	25.80	25.80	28.14	28.14	EN545-B
150	60	160	190	18.00	18.00	22.40	22.40	25.52	25.52	EN545-B
150	80	180	200	20.00	20.00	24.40	24.40	27.52	27.52	EN545-B
150	100	200	205	21.50	21.50	25.90	25.90	29.02	29.02	EN545-B
150	125	230	215	26.50	26.50	30.90	30.90	34.02	34.02	EN545-B
150	150	260	220	30.00	30.00	34.40	34.40	37.52	37.52	EN545-B
200	60	165	215	25.00	25.00	31.40	31.40	35.30	35.30	EN545-B
200	80	175	225	26.00	26.00	32.40	32.40	36.30	36.30	EN545
200	100	200	230	28.50	28.50	34.90	34.90	38.80	38.80	EN545
200	125	230	275	33.50	33.50	39.90	39.90	43.80	43.80
200	150	255	245	36.50	36.50	42.90	42.90	46.80	46.80	EN545
200	200	315	260	45.10	45.00	51.50	51.40	55.40	55.30	EN545
250	80	180	265	37.00	37.00	45.80	45.80	50.48	50.48	EN545
250	100	200	270	37.60	37.60	46.40	46.40	51.08	51.08	EN545
250	125	260	275	41.00	41.00	49.80	49.80	54.48	54.48
250	150	260	280	44.90	44.90	53.70	53.70	58.38	58.38	EN545
250	200	315	290	51.80	51.70	60.60	60.50	65.28	65.18	EN545
250	250	375	300	60.20	59.80	69.00	68.60	73.68	73.28	EN545
300	80	180	295	37.40	37.40	47.80	47.80	53.26	53.26	EN545
300	100	205	300	40.20	40.20	50.60	50.60	56.06	56.06	EN545
300	150	260	310	48.10	48.10	58.50	58.50	63.96	63.96	EN545
300	200	320	320	56.20	56.10	66.60	66.50	72.06	71.96	EN545
300	250	380	330	66.70	66.20	77.10	76.60	82.56	82.06	EN545-B
300	300	440	340	78.30	77.60	88.70	88.00	94.16	93.46	EN545-B
350	80	185	325	52.90	52.90	65.90	65.90	72.14	72.14	EN545-B
350	100	205	330	55.70	55.70	68.70	68.70	74.94	74.94	EN545
350	150	270	340	65.50	65.50	78.50	78.50	84.74	84.74	EN545-B
350	200	325	350	74.30	74.10	87.30	87.10	93.54	93.34	EN545
350	250	385	360	85.60	85.10	98.60	98.10	104.84	104.34	EN545-B
350	350	495	380	109.50	110.30	122.50	123.30	128.74	129.54	EN545
400	80	185	355	59.50	59.50	75.10	75.10	81.34	81.34	EN545
400	100	210	360	63.10	63.10	78.70	78.70	84.94	84.94	EN545
400	150	270	370	73.60	73.60	89.20	89.20	95.44	95.44	EN545
400	200	325	380	83.40	83.30	99.00	98.90	105.24	105.14	EN545
400	250	385	390	96.10	95.70	111.70	111.30	117.94	117.54	EN545-B
400	300	440	400	109.50	108.70	125.10	124.30	131.34	130.54	EN545
400	400	560	420	133.20	138.20	148.80	153.80	155.04	160.04	EN545
