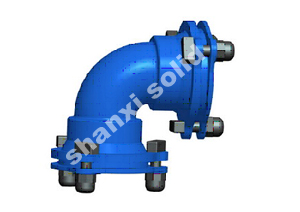

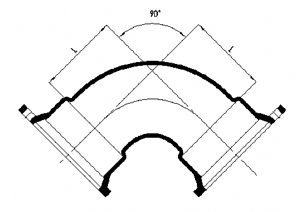

90° Double Socket Bends

90° Double Socket Bends
双承90度弯头
DN
L
Mass without glands (kg)
Mass with glands (kg)
Mass completely (kg)
standard
60
80
5.00
6.52
8.08
　
80
85
7.50
9.46
11.80
　
100
100
10.50
13.70
16.04
　
125
115
14.00
17.80
20.14
　
150
130
17.50
21.90
25.02
　
200
160
26.50
32.90
36.80
　
250
240
43.20
52.00
56.68
　
300
280
56.00
66.40
71.86
　
350
368
79.50
92.50
98.74
　
400
415
100.00
115.60
121.84
　
450
461
131.00
152.40
159.12
　
500
508
167.00
197.40
205.80
　
600
600
248.00
288.00
298.20
　
700
720
408.00
　
　
　
800
820
544.00
　
　
　
900
920
720.00
　
　
　
1000
1020
935.00
　
　
　
1100
1120
1168.00
　
　
　
1200
1220
1444.00
　
　
　
1400
1220
1918.00
　
　
　
1500
1270
2230.00
　
　
　
1600
1290
2543.00
　
　
　
1800
1320
3229.00
　
　
　
2000
1360
4033.00
　
　
　
2200
1400
5884.00
　
　
　
2400
1460
7205.00
　
　
　
2600
1520
8705.00
　
　
　
