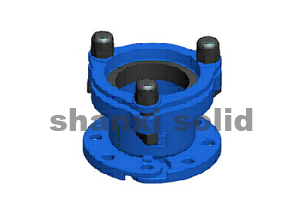

Loosing Flanged Socket

Loosing Flanged Socket
散法兰承口
DN
L
Mass without glands PN16(kg)
Mass with glands PN16 (kg)
Mass completely PN16(kg)
standard
60
121
4.60
5.36
6.14
　
80
121
6.00
6.98
8.15
　
100
121
7.20
8.80
9.97
　
125
132.5
9.10
11.00
12.17
　
150
135
12.00
14.20
15.76
　
200
140
17.50
20.70
22.65
　
250
145
23.50
27.90
30.24
　
300
160
32.10
37.30
40.03
　
350
166
41.80
48.30
51.42
　
400
168
52.70
60.50
63.62
　
450
184
68.70
79.40
82.76
　
500
188
85.50
100.70
104.90
　
600
205
122.50
142.50
147.60
　
