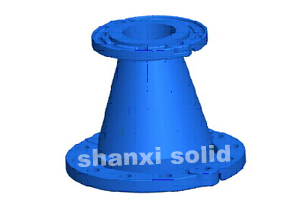

dbl Loosing Flanged Taper 散法兰同心渐缩
DN	dn	L	Mass without loosing flanges (kg)	Mass with loosing flanges PN10 (kg)	Mass with loosing flanges PN16 (kg)	Standard
60	50	160	2.30	5.7	5.7
80	40	170	2.50	6.2	6.2
80	50	170	2.70	6.60	6.60
80	60	185	2.80	6.90	6.90	EN545-B
80	65	266	4.80	9.30	9.30
100	40	170	3.00	6.90	6.90
100	50	170	3.20	7.30	7.30
100	60	170	3.30	7.60	7.60
100	65	264	4.90	9.60	9.60
100	80	170	3.70	8.50	8.50
100	80	253	4.80	9.60	9.60
125	40	170	3.60	8.20	8.20
125	50	170	3.80	8.60	8.60
125	60	170	4.00	9.00	9.00
125	65	170	4.20	9.60	9.60
125	80	170	4.40	9.90	9.90
125	80	260	7.00	12.50	12.50
125	100	170	4.80	10.50	10.50
150	40	170	4.40	10.00	10.00
150	50	170	4.60	10.40	10.40
150	60	170	4.80	10.80	10.80
150	65	351	9.20	15.60	15.60
150	80	170	5.20	11.70	11.70
150	100	170	5.60	12.30	12.30
150	125	170	6.30	13.70	13.70
200	80	235	8.10	16.40	16.30
200	80	270	9.60	17.90	17.80
200	100	270	10.20	18.70	18.60
200	125	270	11.20	20.40	20.30
200	150	270	12.20	22.40	22.30
250	100	270	12.80	23.90	23.50
250	125	270	13.70	25.50	25.10
250	150	270	14.70	27.50	27.10
250	200	270	17.00	31.60	31.30
300	100	270	15.80	29.60	28.90
300	125	270	16.70	31.20	30.50
300	150	265	15.40	30.90	32.00
300	200	270	20.00	37.30	36.50
300	250	270	22.40	42.30	41.30
400	150	270	26.10	46.80	51.30
