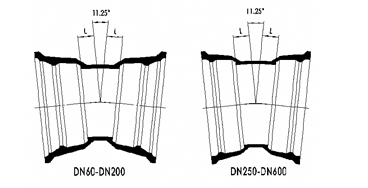

Double EX Socket 11.25 deg Bend

double ex socket 11.25 deg bend

Double EX Socket 11.25 deg Bend
EX Ë«³Ð11.25¶ÈÍäÍ·
DN
L
Mass without glands (kg)
Mass with glands (kg)
Mass completely (kg)
60
25
5.80
10.80
12.48
80
30
7.50
13.10
15.62
100
30
9.30
15.30
17.82
125
35
11.10
17.70
20.22
150
35
14.50
22.70
26.06
200
40
22.00
32.40
36.60
250
50
32.60
43.40
48.44
300
55
41.10
57.50
63.38
350
60
49.90
67.90
74.62
400
65
59.00
81.40
88.96
450
70
73.90
111.90
118.62
500
75
88.30
128.30
138.30
600
85
123.00
176.00
188.00
