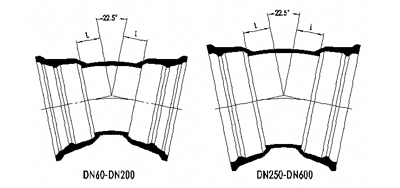

Double EX Socket 22.5 deg Bend

double ex socket 22.5 deg bend

Double EX Socket 22.5 deg Bend
EX Ë«³Ð22.5¶ÈÍäÍ·
DN
L
Mass without glands (kg)
Mass with glands (kg)
Mass completely (kg)
60
35
5.70
10.70
12.38
80
40
7.50
13.10
15.62
100
40
9.30
15.30
17.82
125
50
11.00
17.60
20.12
150
55
14.20
22.40
25.76
200
65
20.50
30.90
35.10
250
75
32.00
42.80
47.84
300
85
44.00
60.40
66.28
350
95
55.40
73.40
80.12
400
110
67.40
89.80
97.36
450
120
85.60
123.60
130.32
500
130
103.40
143.40
153.40
600
150
146.00
199.00
211.00
