Structural Features and Working Principle of Check Valves
Feb. 27, 2026
I. Product Overview

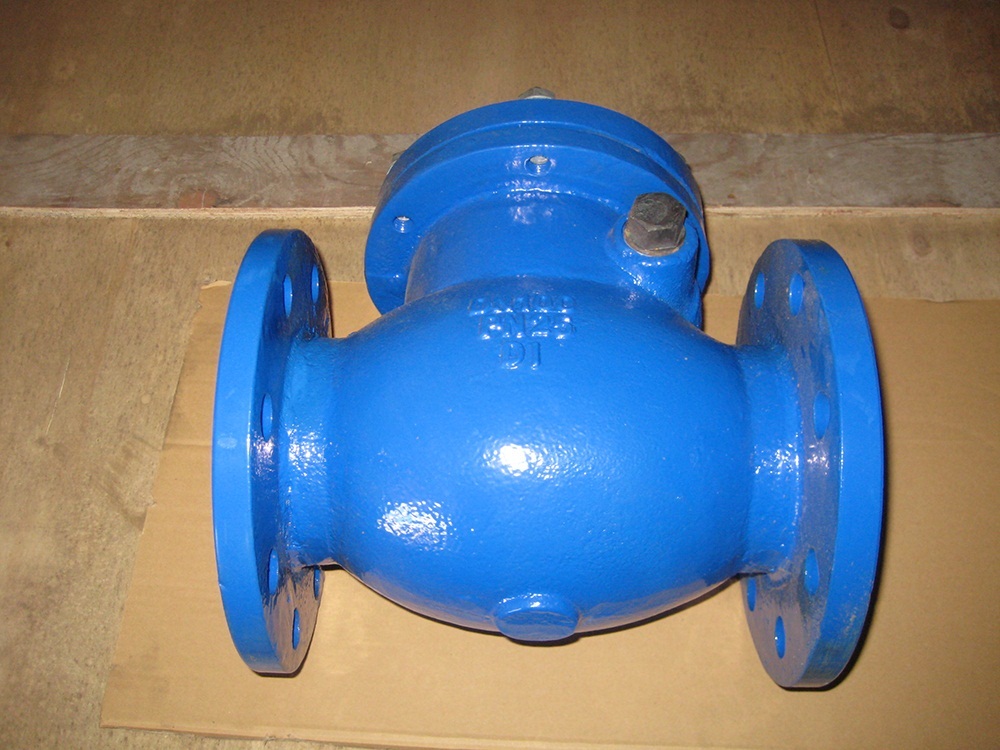

Check valves, also known as one-way valves or non-return valves, are a type of automatic control valve. Their core function is to allow medium to flow in one direction only and automatically prevent backflow. They are widely used in water supply and drainage, HVAC, fire protection, industrial pipelines, pump outlets, and other systems to avoid equipment damage, pipeline shock, and system failure caused by medium backflow.
II. Working Principle
Check valves achieve automatic opening and closing relying on the pressure generated by the medium flow itself, without manual or external drive.
· When the medium flows forward, the fluid pressure pushes the disc open, allowing smooth passage.
· When the medium tends to flow backward, the backflow pressure and the weight of the disc quickly close the disc, cutting off the backflow channel to achieve the check function.
The opening and closing are fully determined by the flow direction, with sensitive action and reliable check performance, effectively protecting pumps, compressors, instruments, and other key equipment.
III. Structural Features
1.Simple structure and compact size
The overall structure is simple without complex transmission mechanisms, requiring a small installation space and suitable for various pipeline layouts.
2.Automatic opening and closing, no external power required
It automatically switches by fluid pressure without electricity, air supply, or manual operation, with stable operation and a low failure rate.
3.Good sealing performance and quick check action
The disc fits closely with the seat, responding quickly when closing, effectively reducing water hammer impact, pipeline vibration, and noise.
4. Wide application range
Compatible with water, steam, oil, gas, and many other media. Available materials include cast iron, cast steel, stainless steel, brass, etc., to meet different pressures, temperatures, and corrosive environments.
5. Easy installation and maintenance
It can be installed horizontally or vertically. Maintenance is simple; seal replacement and disc maintenance are convenient, ensuring long service life.
IV. Summary
With the advantages of automatic operation, backflow prevention, reliable sealing, and simple structure, check valves have become indispensable safety components in pipeline systems, playing a key role in equipment protection, stable operation, and improved system safety.
