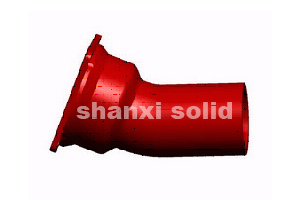

MJ x PE 22.5 Deg Bends

MJ x PE 22.5 Deg Bends
MJ x PE 22.5ΆΘΝδΝ· |

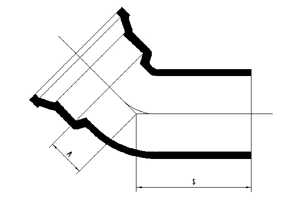

SIZE (in) |
T (in) |
A (in) |
S (in) |
Weight (lb) |
3 |
0.33 |
1.00 |
6.50 |
12 |
4 |
0.34 |
1.50 |
7.00 |
18 |
6 |
0.36 |
2.00 |
7.50 |
29 |
8 |
0.38 |
2.50 |
8.00 |
43 |
10 |
0.40 |
3.00 |
8.50 |
61 |
12 |
0.42 |
3.50 |
9.00 |
79 |
14 |
0.47 |
3.75 |
11.25 |
133 |
16 |
0.50 |
3.75 |
11.75 |
166 |
18 |
0.54 |
6.00 |
13.00 |
235 |
20 |
0.57 |
7.00 |
14.00 |
300 |
24 |
0.61 |
7.50 |
14.50 |
395 |
30 |
0.66 |
6.75 |
15.75 |
600 |
36 |
0.74 |
7.75 |
16.75 |
865 |
42 |
0.82 |
9.00 |
18.00 |
1200 |
48 |
0.90 |
10.00 |
19.00 |
1575 |
