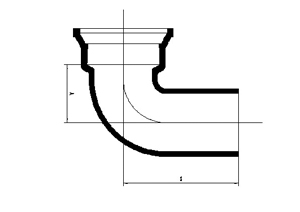

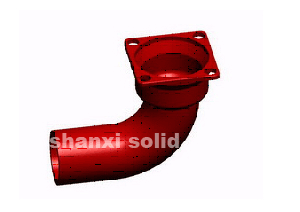

MJ x PE 90 Deg Bends

MJ x PE 90 Deg Bends
MJ x PE 90ΆΘΝδΝ· |
SIZE (in) |
T (in) |
A (in) |
S (in) |
Weight (lb) |
3 |
0.33 |
3.25 |
8.50 |
16 |
4 |
0.34 |
4.00 |
9.50 |
22 |
6 |
0.36 |
5.00 |
11.50 |
41 |
8 |
0.38 |
6.50 |
12.50 |
58 |
10 |
0.40 |
7.50 |
13.00 |
83 |
12 |
0.42 |
9.00 |
14.50 |
114 |
14 |
0.47 |
11.50 |
19.50 |
197 |
16 |
0.50 |
12.50 |
20.50 |
248 |
18 |
0.54 |
14.00 |
21.00 |
325 |
20 |
0.57 |
15.00 |
22.50 |
390 |
24 |
0.61 |
17.00 |
25.00 |
575 |
30 |
0.66 |
21.50 |
30.50 |
865 |
36 |
0.74 |
24.50 |
33.50 |
1355 |
42 |
0.82 |
29.25 |
38.25 |
2055 |
48 |
0.90 |
33.25 |
42.25 |
2805 |
