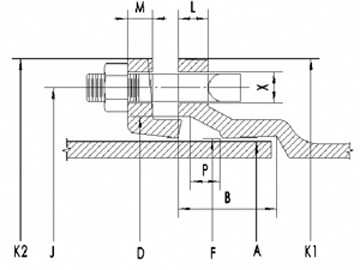

Dimensions of Mechanical-joint
Dimensions of Mechanical-joint
MJ³Ð¿Ú³ß´ç
|
SIZE (in) |
A
Plain End |
B |
C |
D |
F |
§Ý |
X +0.06 -0.00 |
J ¡À0.06 |
K1 |
K2 |
L |
M |
P |
S |
Bolts |
No. |
Size |
Length |
3 |
3.96 ¡À0.06 |
2.50 |
4.84 ¡À0.04 |
4.94+0.06 -0.04 |
4.06+0.07 -0.03 |
28o |
3/4 |
6.19 |
7.62 -0.06 |
7.69-0.12 |
0.58-0.06 |
0.62 -0.06 |
0.63 |
0.39 |
4 |
5/8 |
3 |
4 |
4.80 ¡À0.06 |
2.50 |
5.92 ¡À0.04 |
6.02+0.06 -0.04 |
4.90+0.07 -0.03 |
28o |
7/8 |
7.50 |
9.06-0.06 |
9.12-0.12 |
0.60-0.06 |
0.75 -0.06 |
0.75 |
0.39 |
4 |
3/4 |
3 1/2 |
6 |
6.90 ¡À0.06 |
2.50 |
8.02 ¡À0.04 |
8.12 +0.06 -0.04 |
7 .00 +0.07 -0.03 |
28o |
7/8 |
9.50 |
11.06-0.06 |
11.12 -0.12 |
0.63-0.06 |
0.88-0.06 |
0.75 |
0.43 |
6 |
3/4 |
3 1/2 |
8 |
9.05 ¡À0.06 |
2.50 |
10.17 ¡À0.04 |
10.27 +0.06 -0.04 |
9.15+0.07 -0.03 |
28o |
7/8 |
11.75 |
13.31-0.06 |
13.37 -0.12 |
0.66-0.08 |
1.00-0.08 |
0.75 |
0.45 |
6 |
3/4 |
3 1/2 |
10 |
11.10 ¡À0.06 |
2.50 |
12.22 +0.06 -0.04 |
12.34+0.06 -0.04 |
11.20 +0.07 -0.03 |
28o |
7/8 |
14.00 |
15.62-0.06 |
15.62-0.12 |
0.70-0.08 |
1.00-0.08 |
0.75 |
0.47 |
8 |
3/4 |
3 1/2 |
12 |
13.20 ¡À0.06 |
2.50 |
14.32 +0.06 -0.04 |
14.44 +0.06 -0.04 |
13.30 +0.07 -0.03 |
28o |
7/8 |
16.25 |
17.88 -0.06 |
17.88-0.12 |
0.73-0.08 |
1.00-0.08 |
0.75 |
0.49 |
8 |
3/4 |
3 1/2 |
14 |
15.30+0.05 -0.08 |
3.50 |
16.40+0.07 -0.05 |
16.54 +0.07 -0.05 |
15.44+0.06 -0.07 |
28o |
7/8 |
18.75 |
20.25-0.08 |
20.25-0.12 |
0.79-0.10 |
1.25-0.10 |
0.75 |
0.55 |
10 |
3/4 |
4 |
16 |
17.40+0.05 -0.08 |
3.50 |
18.50+0.07 -0.05 |
18.64+0.07 -0.05 |
17.54+0.06 -0.07 |
28o |
7/8 |
21.00 |
22.50-0.08 |
22.50 -0.12 |
0.85-0.10 |
1.31-0.10 |
0.75 |
0.58 |
12 |
3/4 |
4 |
18 |
19.50+0.05 -0.08 |
3.50 |
20.60 +0.07 -0.05 |
20.74+0.07 -0.05 |
19.64+0.06 -0.07 |
28o |
7/8 |
23.25 |
24.83-0.15 |
24.75-0.15 |
1.00-0.12 |
1.38-0.12 |
0.75 |
0.68 |
12 |
3/4 |
4 |
20 |
21.60+0.05 -0.08 |
3.50 |
22.70+0.07 -0.05 |
22.84+0.07 -0.05 |
21.74+0.06 -0.07 |
28o |
7/8 |
25.50 |
27.08-0.15 |
27.00 -0.15 |
1.02-0.12 |
1.44-0.12 |
0.75 |
0.69 |
14 |
3/4 |
4 |
24 |
25.80+0.05 -0.08 |
3.50 |
26.90+0.07 -0.05 |
27.04+0.07 -0.05 |
25.94+0.06 -0.07 |
28o |
7/8 |
30.00 |
31.58-0.15 |
31.50 -0.15 |
1.02-0.12 |
1.56 -0.12 |
0.75 |
0.75 |
16 |
3/4 |
4 1/2 |
30 |
32.00+0.08 -0.06 |
4.00 |
33.29+0.08 -0.06 |
33.46 +0.08 -0.06 |
32.17+0.08 -0.06 |
20o |
1 1/8 |
36.88 |
39.12+1.00 -0.18 |
39.12 +0.36 -0.18 |
1.31-0.12 |
2.00-0.12 |
1.00 |
0.82 |
20 |
1 |
5 1/2 |
36 |
38.30+0.08 -0.06 |
4.00 |
39.59+0.08 -0.06 |
39.76 +0.08 -0.06 |
38.47+0.08 -0.06 |
20o |
1 1/8 |
43.75 |
46.00+1.00 -0.18 |
46.00+0.36 -0.18 |
1.45-0.12 |
2.00-0.12 |
1.00 |
1.00 |
24 |
1 |
5 1/2 |
42 |
44.50+0.08 -0.06 |
4.00 |
45.79 +0.08 -0.06 |
45.96+0.08 -0.06 |
44.67+0.08 -0.06 |
20o |
1 3/8 |
50.62 |
53.12 +1.00 -0.18 |
53.12 +0.36 -0.18 |
1.45-0.12 |
2.00-0.12 |
1.00 |
1.25 |
28 |
1 1/4 |
6 |
48 |
50.80+0.08 -0.06 |
4.00 |
52.09+0.08 -0.06 |
52.26+0.08 -0.06 |
50.97+0.08 -0.06 |
20o |
1 3/8 |
57.50 |
60.00+1.00 -0.18 |
60.00 +0.36 -0.18 |
1.45-0.12 |
2.00-0.12 |
1.00 |
1.35 |
32 |
1 1/4 |
6 |
|
