Flange and Flare
·¨À¼À®°È¿Ú

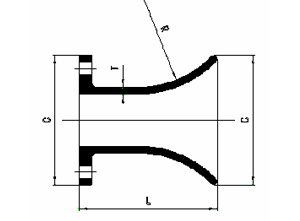

SIZE (in.)
T (in.)
C (in.)
L (in.)
R (in.)
Weight (lb)
3
0.40
7.50
8
6
20
4
0.40
9.00
8
6
30
6
0.45
11.00
8
6
40
8
0.53
13.50
10
8
70
10
0.55
16.00
10
10
95
12
0.66
19.00
12
12
155
14
0.65
21.00
12
14
165
16
0.70
23.50
16
16
240
18
0.75
25.00
16
18
275
20
0.80
27.50
18
20
355
24
0.90
32.00
18
24
480
30
1.07
38.75
24
30
1100
36
1.19
46.00
24
36
1460
42
1.32
53.00
30
42
1750
48
1.44
59.50
30
48
2375
