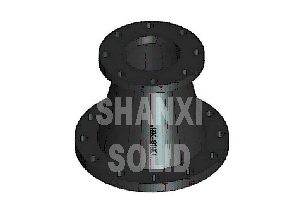

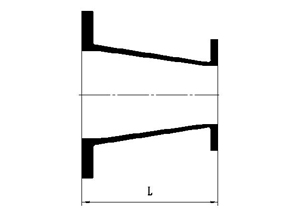

Double Flanged Reducer

Double Flanged Reducer
Ë«·¨À¼½¥Ëõ
DN (in.)
dn (in.)
T (in.)
T1 (in.)
L (in.)
Weight (lb)
3
1
0.48
0.31
6
16
3
1.5
0.48
0.31
6
16
3
2
0.48
0.31
6
16
3
2.5
0.48
0.31
6
21
4
2
0.52
0.31
7
25
4
2.5
0.52
0.31
7
28
4
3
0.52
0.48
7
30
6
1
0.55
0.31
9
35
6
2
0.55
0.31
9
35
6
2.5
0.55
0.31
9
35
6
3
0.55
0.48
9
40
6
4
0.55
0.52
9
45
6
5
0.55
0.52
9
49
8
3
0.60
0.48
11
60
8
4
0.60
0.52
11
65
8
5
0.60
0.52
11
70
8
6
0.60
0.55
11
75
10
4
0.68
0.52
12
85
10
6
0.68
0.55
12
90
10
8
0.68
0.60
12
110
12
4
0.75
0.52
14
120
12
6
0.75
0.55
14
130
12
8
0.75
0.60
14
145
12
10
0.75
0.68
14
170
14
6
0.82
0.55
16
165
14
6
0.66
0.55
16
155
14
8
0.82
0.60
16
185
14
8
0.66
0.60
16
175
14
10
0.82
0.68
16
205
14
10
0.66
0.68
16
190
14
12
0.82
0.75
16
235
14
12
0.66
0.75
16
220
16
6
0.89
0.55
18
210
16
6
0.70
0.55
18
190
16
8
0.89
0.60
18
230
16
8
0.70
0.60
18
210
16
10
0.89
0.68
18
255
16
10
0.70
0.68
18
235
16
12
0.89
0.75
18
285
16
12
0.70
0.75
18
265
16
14
0.89
0.82
18
315
16
14
0.70
0.68
18
280
18
8
0.96
0.60
19
265
18
8
0.75
0.60
19
240
18
10
0.96
0.68
19
290
18
10
0.75
0.68
19
265
18
12
0.96
0.75
19
320
18
12
0.75
0.75
19
295
18
14
0.96
0.82
19
350
18
14
0.75
0.66
19
310
18
16
0.96
0.89
19
385
18
16
0.75
0.70
19
340
20
10
1.03
0.68
20
340
20
10
0.80
0.68
20
310
20
12
1.03
0.75
20
375
20
12
0.80
0.75
20
345
20
14
1.03
0.82
20
405
20
14
0.80
0.66
20
355
20
16
1.03
0.89
20
445
20
16
0.80
0.70
20
390
20
18
1.03
0.96
20
470
20
18
0.80
0.75
20
410
24
10
1.16
0.68
24
500
24
12
1.16
0.75
24
535
24
12
0.89
0.75
24
480
24
14
1.16
0.82
24
565
24
14
0.89
0.66
24
490
24
16
1.16
0.89
24
610
24
16
0.89
0.70
24
525
24
18
1.16
0.96
24
645
24
18
0.89
0.75
24
550
24
20
1.16
1.03
24
695
24
20
0.89
0.80
24
590
30
16
1.37
0.89
30
905
30
18
1.37
0.96
30
970
30
18
1.03
0.75
30
810
30
20
1.37
1.03
30
1035
30
20
1.03
0.80
30
870
30
24
1.37
1.16
30
1155
30
24
1.03
0.89
30
970
36
18
1.58
0.96
36
1430
36
20
1.58
1.03
36
1495
36
20
1.15
0.80
36
1230
36
24
1.58
1.16
36
1635
36
24
1.15
0.89
36
1345
36
30
1.58
1.37
36
1905
36
30
1.15
1.03
36
1555
42
24
1.78
1.16
42
2235
42
24
1.28
0.89
42
1820
42
30
1.78
1.37
42
2555
42
30
1.28
1.03
42
2060
42
36
1.78
1.58
42
2935
42
36
1.28
1.15
42
2345
48
30
1.96
1.37
48
3270
48
30
1.42
1.03
48
2625
48
36
1.96
1.58
48
3710
48
36
1.42
1.15
48
2950
48
42
1.96
1.78
48
4190
48
42
1.42
1.28
48
3320
