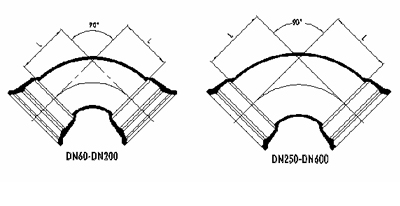

Double EX Socket 90 deg Bend

double ex socket 90 deg bend

Double EX Socket 90 deg Bend
EX Ë«³Ð90¶ÈÍäÍ·
DN
L
Mass without glands (kg)
Mass with glands (kg)
Mass completely (kg)
60
80
7.50
12.50
14.18
80
100
9.00
14.60
17.12
100
120
11.20
17.20
19.72
125
145
14.20
20.80
23.32
150
170
19.20
27.40
30.76
200
220
30.50
40.90
45.10
250
270
49.00
59.80
64.84
300
320
67.90
84.30
90.18
350
370
88.40
106.40
113.12
400
420
115.00
137.40
144.96
450
470
145.30
183.30
190.02
500
520
175.20
215.20
225.20
600
620
267.00
320.00
332.00
