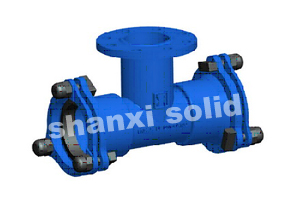

Double Socket Tees With Flange Branch,ductile iron pipe fittings,Flanged Pipe Fittings,ductile iron pipe fittings , flange fittings,flanged fittings

Trío enchufe doble con roma brida 双承三通带法兰支口

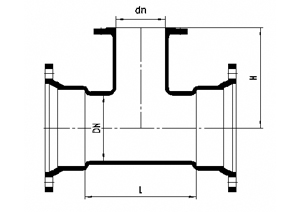

DN	dn	L	H	Mass without glands (kg)			Mass with glands (kg)			standard
DN	dn	L	H	PN10	PN16	PN25	PN10	PN16	PN25	standard
60	60	155	150	7.80	7.80		9.32	9.32		EN545-B
80	80	175	165	10.50	10.50		12.46	12.46		EN545-B
100	80	165	170	12.50	12.50		15.70	15.70		EN545-B
100	100	195	180	13.40	13.40		16.60	16.60		EN545-B
125	125	225	200	17.40	17.40		21.20	21.20		EN545-B
150	80	180	200	16.00	16.00		20.40	20.40		EN545-B
150	100	200	205	17.50	17.50		21.90	21.90		EN545-B
150	150	260	220	22.50	22.50		26.90	26.90		EN545-B
200	80	175	225	20.40	20.40		26.80	26.80		EN545
200	100	200	230	22.20	22.20		28.60	28.60		EN545
200	150	255	245	27.90	27.90		34.30	34.30		EN545
200	200	315	260	33.90	33.70		40.30	40.10		EN545
250	80	180	265	27.20	27.20		36.00	36.00		EN545
250	100	200	270	29.10	29.10		37.90	37.90		EN545
250	150	260	260	35.70	35.70		44.50	44.50		EN545
250	200	315	290	42.20	42.00		51.00	50.80		EN545
250	250	375	300	50.70	50.40		59.50	59.20		EN545
300	100	205	300	36.50	36.50		46.90	46.90		EN545
300	150	260	310	43.70	43.70		54.10	54.10		EN545
300	200	320	320	51.20	51.00		61.60	61.40		EN545
300	250	380	330	60.50	60.20		70.90	70.60		EN545-B
300	300	440	340	70.80	70.50		81.20	80.90		EN545-B
350	100	205	330	50.60	50.60		63.60	63.60		EN545
350	150	270	340	59.50	59.50		72.50	72.50		EN545-B
350	200	325	350	67.60	67.40		80.60	80.40		EN545
350	250	385	360	77.70	77.40		90.70	90.40		EN545
350	350	495	380	97.60	100.30		110.60	113.30		EN545
400	100	210	360	57.40	57.40		73.00	73.00		EN545
400	150	270	370	66.90	66.90		82.50	82.50		EN545
400	200	325	380	75.90	75.70		91.50	91.30		EN545
400	250	385	390	87.30	87.00		102.90	102.60		EN545-B
400	300	440	400	99.10	98.80		114.70	114.40		EN545
400	400	560	420	121.10	125.60		136.70	141.20		EN545
450	100	215	395	106.00	106.00	107.00	127.40	127.40		EN545-B
450	150	270	400	127.00	127.00	128.00	148.40	148.40		EN545
450	200	325	410	130.00	130.00	132.00	151.40	151.40		EN545
450	250	375	420	149.00	149.00	153.00	170.40	170.40
450	300	455	430	157.00	157.00	162.00	178.40	178.40		EN545-B
450	350	495	440	174.00	177.00	186.00	195.40	198.40
450	400	560	450	185.00	189.00	200.00	206.40	210.40		EN545-B
450	450	620	460	200.00	208.00	219.00	221.40	229.40		EN545-B
500	100	215	420	120.00	120.00	120.00				EN545
500	150	275	430	143.00	143.00	144.00
500	200	330	440	147.00	146.00	148.00				EN545
500	250	380	450	172.00	171.00	177.00
500	300	450	460	177.00	177.00	182.00
500	350	500	470	198.00	201.00	210.00
500	400	565	480	207.00	212.00	223.00				EN545
500	450	620	490	226.00	235.00	250.00
500	500	680	500	242.00	256.00	266.00				EN545
600	100	220	480	152.00	152.00	153.00
600	150	285	490	183.00	183.00	184.00
600	200	340	500	187.00	187.00	188.00				EN545
600	250	380	510	215.00	215.00	218.00
600	300	455	520	222.00	222.00	227.00
600	350	500	530	247.00	251.00	260.00
600	400	570	540	258.00	263.00	274.00				EN545
600	450	620	550	281.00	289.00	305.00
600	500	685	560	301.00	305.00	327.00
600	600	800	580	345.00	368.00	380.00				EN545
700	100	345	510	243.00	243.00	244.00
700	150	345	520	246.00	246.00	247.00
700	200	345	525	250.00	249.00	251.00				EN545
700	300	575	540	301.00	301.00	307.00
700	400	575	555	329.00	407.00	409.00				EN545
700	500	810	570	392.00	407.00	409.00
700	600	810	585	422.00	445.00	457.00
700	700	925	600	476.00	488.00	521.00				EN545
800	100	350	570	295.00	295.00	295.00
800	150	350	580	298.00	298.00	299.00
800	200	350	585	302.00	301.00	303.00				EN545
800	300	580	600	362.00	362.00	368.00
800	400	580	615	396.00	401.00	412.00				EN545
800	500	815	630	513.00	528.00	540.00
800	600	815	645	579.00	603.00	614.00
800	700	1045	660	611.00	626.00	660.00
800	800	1045	675	631.00	646.00	699.00				EN545
900	100	355	630	365.00	365.00	366.00
900	150	355	640	368.00	368.00	369.00
900	200	355	645	371.00	371.00	373.00				EN545
900	300	590	660	442.00	442.00	448.00
900	400	590	675	484.00	488.00	499.00				EN545
900	500	820	690	653.00	668.00	690.00
900	600	820	705	745.00	769.00	780.00
900	700	1050	720	775.00	790.00	824.00
900	800	1050	735	795.00	810.00	863.00
900	900	1170	750	822.00	841.00	907.00				EN545
1000	100	360	690	461.00	461.00	462.00
1000	150	360	700	451.00	451.00	452.00
1000	200	360	705	455.00	455.00	457.00				EN545
1000	300	595	720	552.00	552.00	558.00
1000	400	595	735	586.00	591.00	602.00				EN545
1000	500	830	750	852.00	867.00	879.00
1000	600	830	765	946.00	970.00	981.00
1000	700	1055	780	985.00	1000.00	1032.00
1000	800	1055	795	944.00	1009.00	1074.00
1000	900	1290	810	1052.00	1076.00	1137.00
1000	1000	1290	825	1059.00	1094.00	1192.00				EN545
1100	200	370	765	531.00	531.00	533.00
1100	400	600	795	680.00	684.00	695.00				EN545
1100	600	830	825	836.00	860.00	871.00				EN545
1100	800	1065	855	1015.00	1029.00	1082.00
1100	1000	1295	885	1205.00	1240.00	1326.00
1100	1100	1410	900	1313.00	1348.00	1448.00
1200	100	375	810	676.00	676.00	676.00
1200	150	375	820	678.00	678.00	678.00
1200	200	375	825	618.00	618.00	620.00
1200	300	605	840	769.00	769.00	775.00
1200	400	605	855	787.00	792.00	803.00
1200	500	840	870	968.00	973.00	995.00
1200	600	840	885	967.00	991.00	1003.00				EN545
1200	700	1070	900	1169.00	1184.00	1218.00
1200	800	1070	915	1162.00	1177.00	1295.00				EN545
1200	900	1300	930	1367.00	1427.00	1452.00
1200	1000	1300	945	1372.00	1406.00	1556.00				EN545
1200	1200	1535	975	1617.00	1672.00	1846.00
1400	100	385	910	1120.00	1120.00	1120.00
1400	200	385	920	1189.00	1189.00	1189.00
1400	400	800	950	1221.00	1221.00	1237.00
1400	600	1030	980	1441.00	1464.00	1519.00				EN545
1400	800	1260	1010	1677.00	1692.00	1777.00				EN545
1400	1000	1495	1040	1929.00	1964.00	2075.00				EN545
1400	1200	1725	1070	2205.00	2195.00	2593.00
1400	1400	1960	1100	2501.00	2557.00	2917.00
1600	100	400	1020	1261.00	1261.00	1261.00
1600	200	400	1030	1361.00	1361.00	1361.00
1600	400	810	1060	1561.00	1565.00	1576.00
1600	600	1040	1090	1831.00	1854.00	1866.00				EN545
1600	800	1275	1120	2121.00	2136.00	2189.00				EN545
1600	1000	1505	1150	2416.00	2451.00	2536.00				EN545
1600	1200	1740	1180	2743.00	2798.00	2907.00				EN545
1600	1400	1970	1210	3073.00	3130.00	3293.00
1600	1600	2200	1240	3461.00	3551.00	3741.00
1800	100	410	1130	1742.00	1742.00	1742.00
1800	200	410	1140	1842.00	1842.00	1842.00
1800	400	820	1170	2042.00	2046.00	2059.00
1800	600	1055	1200	2302.00	2326.00	2337.00				EN545
1800	800	1285	1230	2642.00	2657.00	2710.00				EN545
1800	1000	1520	1260	2998.00	3032.00	3118.00				EN545
1800	1200	1750	1290	3371.00	3426.00	3535.00				EN545
1800	1400	1980	1320	3750.00	3807.00	3970.00
1800	1600	2215	1350	4188.00	4277.00	4468.00
1800	1800	2445	1380	4624.00	4735.00	4990.00
2000	200	420	1250	2230.00	2230.00	2232.00
2000	400	830	1280	2530.00	2534.00	2547.00
2000	600	1065	1310	2830.00	2853.00	2865.00				EN545
2000	800	1300	1340	3239.00	3254.00	3307.00
2000	1000	1530	1370	3648.00	3682.00	3768.00				EN545
2000	1200	1760	1400	4079.00	4134.00	4243.00
2000	1400	1995	1430	4523.00	4580.00	4743.00				EN545
2000	1600	2225	1460	5007.00	5097.00	5287.00
2000	1800	2460	1490	5497.00	5609.00	5863.00
2000	2000	2690	1520	6030.00	6168.00	6506.00
2200	600	1080	1420	3510.00	3537.00
2200	800	1310	1450	3873.00	3888.00
2200	1000	1540	1480	4347.00	4381.00
2200	1200	1775	1510	4851.00	4906.00
2200	1400	2005	1540	5349.00	5406.00
2200	1600	2240	1570	5903.00	5992.00
2200	1800	2470	1600	6442.00	6553.00
2200	2000	2700	1630	7022.00	7160.00
2200	2200	2935	1660	7688.00	7858.00
2400	600	1090	1530	4085.00	4111.00
2400	800	1320	1560	4566.00	4581.00
2400	1000	1555	1590	5119.00	5154.00
2400	1200	1785	1620	5682.00	5737.00
2400	1400	2020	1650	6257.00	6314.00
2400	1600	2250	1680	6866.00	6955.00
2400	1800	2480	1710	7186.00	7579.00
2400	2000	2715	1740	8120.00	8258.00
2400	2200	2945	1770	8826.00	8996.00
2400	2400	3180	1800	9614.00	9842.00
2600	600	1100	1640	4955.00	4971.00
2600	800	1335	1670	5553.00	5568.00
2600	1000	1565	1700	6175.00	6210.00
2600	1200	1800	1730	6829.00	6884.00
2600	1400	2030	1760	7471.00	7528.00
2600	1600	2260	1790	8155.00	8244.00
2600	1800	2495	1820	8842.00	8954.00
2600	2000	2725	1850	9553.00	9691.00
2600	2200	2960	1880	10339.00	10510.00
2600	2400	3190	1910	11173.00	11401.00
2600	2600	3420	1940	11973.00	12226.00
