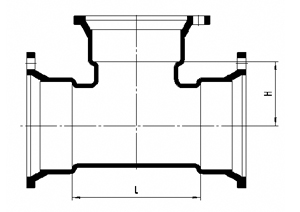

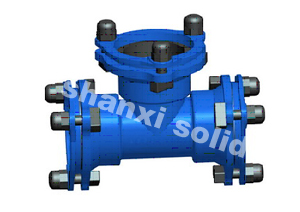

Todo Toma Tee 全承三通
DN	dn	L	H	Mass without glands (kg)	Mass with glands (kg)	standard
60	60	145	70	6.10	8.38	EN545
80	60	145	80	7.60	10.32
80	80	170	85	8.70	11.64	EN545
100	60	145	90	9.30	13.26	EN545
100	80	170	90	10.40	14.58	EN545
100	100	190	95	11.40	16.20	EN545
125	80	170	105	12.00	16.78	EN545
125	100	195	110	13.30	18.70	EN545
125	125	225	110	14.50	20.20	EN545
150	60	145	115	12.70	17.86
150	80	170	120	14.00	19.38	EN545
150	100	195	120	15.50	21.50	EN545
150	150	255	125	18.10	24.70	EN545
200	80	175	145	18.80	26.18	EN545
200	100	200	145	20.30	28.30	EN545
200	150	255	150	23.60	32.20	EN545
200	200	315	155	27.30	36.90	EN545
250	100	200	170	26.90	37.30	EN545
250	150	260	175	31.20	42.20	EN545
250	200	315	180	35.40	47.40	EN545
250	250	375	190	41.10	54.30	EN545
300	100	205	195	34.30	46.30	EN545
300	150	260	200	39.00	51.60	EN545
300	200	320	205	44.30	57.90	EN545
300	250	375	210	50.00	64.80	EN545
300	300	435	220	56.70	72.30	EN545
350	100	205	260	78.00	92.60	EN545
350	150	260	265	95.00	110.20
350	200	325	270	98.00	114.20	EN545
350	250	375	275	109.00	126.40
350	300	435	285	122.00	140.20
350	350	495	290	133.00	152.50	EN545
400	100	210	285	92.00	109.20	EN545
400	150	265	290	111.00	128.80
400	200	325	295	114.00	132.80	EN545
400	250	375	300	128.00	148.00
400	300	435	310	140.00	160.80
400	350	495	315	152.00	174.10
400	400	560	320	167.00	190.40	EN545
450	100	215	320	116.00	139.00	EN545-B
450	150	270	320	128.00	151.60	EN545-B
450	200	325	320	131.00	155.60	EN545-B
450	250	375	325	147.00	172.80	EN545-B
450	300	445	335	160.00	186.60	EN545-B
450	350	495	340	175.00	202.90
450	400	560	345	188.00	217.20	EN545-B
450	450	620	350	203.00	235.10	EN545-B
500	100	215	345	123.00		EN545
500	150	275	345	145.00
500	200	330	345	148.00		EN545
500	250	380	350	168.00
500	300	450	360	179.00
500	400	565	370	210.00		EN545
500	450	620	375	224.00
500	500	680	380	242.00		EN545
600	100	220	395	168.00
600	150	285	395	184.00
600	200	340	395	187.00		EN545
600	250	380	400	213.00
600	300	455	410	223.00
600	350	500	415	248.00
600	400	570	420	259.00		EN545
600	450	620	425	281.00
600	500	685	430	296.00
600	600	800	440	337.00		EN545
700	100	345	445	215.00
700	150	395	445	232.00
700	200	345	445	250.00		EN545
700	300	575	470	333.00
700	400	575	470	333.00		EN545
700	500	810	480	370.00
700	600	810	490	422.00
700	700	925	500	475.00		EN545
800	100	350	495	264.00
800	150	350	495	284.00
800	200	350	495	301.00		EN545
800	300	580	510	350.00
800	400	580	520	398.00		EN545
800	500	815	530	447.00
800	600	815	540	576.00		EN545
800	700	1045	550	556.00
800	800	1045	560	618.00		EN545
900	100	355	545	333.00
900	150	355	545	359.00
900	200	355	545	370.00		EN545
900	300	590	570	438.00
900	400	590	570	484.00		EN545
900	500	820	590	546.00
900	600	820	590	739.00
900	700	1050	615	760.00
900	800	1050	615	777.00
900	900	1170	625	806.00		EN545
1000	100	360	595	445.00
1000	150	360	595	485.00
1000	200	360	595	453.00		EN545
1000	300	595	620	568.00
1000	400	595	620	584.00		EN545
1000	500	830	640	690.00
1000	600	830	640	936.00
1000	700	1055	665	955.00
1000	800	1055	665	971.00
1000	900	1290	685	1005.00
1000	1000	1290	685	1033.00		EN545
1100	200	370	650	680.00
1100	400	600	670	675.00		EN545
1100	600	830	690	822.00		EN545
1100	800	1065	715	986.00
1100	1000	1295	735	1172.00
1100	1100	1410	745	1267.00
1200	100	375	700	649.00
1200	150	375	700	686.00
1200	200	375	700	726.00
1200	300	605	720	819.00
1200	400	605	720	780.00
1200	500	840	740	890.00
1200	600	840	740	950.00		EN545
1200	700	1070	765	1092.00
1200	800	1070	765	1129.00		EN545
1200	900	1300	785	1311.00
1200	1000	1300	785	1331.00		EN545
1200	1200	1535	805	1547.00
1400	100	385	820	792.00
1400	200	385	820	891.00
1400	400	800	820	1098.00
1400	600	1030	840	1422.00		EN545
1400	800	1260	865	1614.00		EN545
1400	1000	1495	885	1886.00		EN545
1400	1200	1725	905	2133.00
1400	1400	1960	930	2436.00
1600	100	400	920	1054.00
1600	200	400	920	1183.00
1600	400	810	920	1435.00
1600	600	1040	940	1806.00		EN545
1600	800	1275	965	2078.00		EN545
1600	1000	1505	985	2363.00		EN545
1600	1200	1740	1010	2660.00		EN545
1600	1400	1970	1030	2992.00
1600	1600	2200	1050	3346.00
1800	100	410	1020	1373.00
1800	200	410	1020	1525.00
1800	400	820	1020	1831.00
1800	600	1055	1040	2272.00		EN545
1800	800	1285	1065	2591.00		EN545
1800	1000	1520	1085	2933.00		EN545
1800	1200	1750	1110	3274.00		EN545
1800	1400	1980	1130	3652.00
1800	1600	2215	1150	4052.00
1800	1800	2445	1175	4498.00
2000	200	420	1120	1924.00
2000	400	830	1120	2299.00
2000	600	1065	1140	2793.00		EN545
2000	800	1300	1165	3179.00
2000	1000	1530	1185	3572.00		EN545
2000	1200	1760	1210	3968.00
2000	1400	1995	1230	4407.00		EN545
2000	1600	2225	1250	4850.00
2000	1800	2460	1275	5346.00
2000	2000	2690	1295	5873.00
2200	600	1080	1240	3500.00
2200	800	1310	1265	3803.00
2200	1000	1540	1285	4258.00
2200	1200	1775	1310	4725.00
2200	1400	2005	1330	5214.00
2200	1600	2240	1350	5722.00
2200	1800	2470	1375	6264.00
2200	2000	2700	1395	6835.00
2200	2200	2935	1415	7457.00
2400	600	1090	1340	4100.00
2400	800	1320	1365	4486.00
2400	1000	1555	1385	5018.00
2400	1200	1785	1410	5539.00
2400	1400	2020	1430	6102.00
2400	1600	2250	1450	6662.00
2400	1800	2480	1475	7263.00
2400	2000	2715	1495	7900.00
2400	2200	2945	1515	8558.00
2400	2400	3180	1540	9297.00
2600	600	1100	1440	5100.00
2600	800	1335	1465	5463.00
2600	1000	1565	1485	6060.00
2600	1200	1800	1510	6670.00
2600	1400	2030	1530	7296.00
2600	1600	2260	1550	7927.00
2600	1800	2495	1575	8609.00
2600	2000	2725	1595	9301.00
2600	2200	2960	1615	10034.00
2600	2400	3190	1640	10814.00
2600	2600	3420	1660	11748.00
